Monitored Computers

Use Manage – Monitoring – Computers to display the list of computers that you wish to monitor.

Computer List

The list can be edited with commands AddNew, EditEdit, and DeleteDelete.

Computers running Agent version 6.0 SP2 or later are added to this list automatically as soon as WebService receives data from them. If you are monitoring any machines that are running an older Agent version, you need to add them to the list manually and enable the support for older Agent versions on the Server.

Loading Computers From LDAP (Active Directory)

You can load your computer list with the LDAP protocol, e.g. from Active Directory.

  1. Go to the computer list and select Load from Active DirectoryLoad from Active Directory.
  2. Select a path to the folder to load your computer list from. If you want to load all computers from the entire domain company.com, use the following path:
    LDAP://dc=company,dc=com
    The path is usually specified in the following format:
    LDAP://server_name/ou=organizational_unit,dc=domain,dc=parent_domain
  3. Click on Load

Deleting Computers

If you delete a computer with the DeleteDelete command, the computer will not be deleted, it will only be voided. The data from such a machine are hidden and are not included in statistics. If you want to undo this action:
  1. Click on Display deleted computersDisplay deleted computers. The Computers List will now display also deleted computers (marked with a special icon).
  2. Mark the computers that you want to restore
  3. Click on Restore deletedRestore deleted. The activity records for the marked computers will be displayed again and the will also be included in the statistics.

Agent Diagnostics

If you want to test the communication settings between Agents and WebService, go to the Computer List and

  1. Mark the computers that you want to test
  2. Click on Restore deletedDiagnose
  3. A new window will open with the diagnostics results
The diagnostics feature checks the installed Agent version, the Monitoring Portal address, the authentication method and the password, if applicable. WMI must be enabled for the diagnostics to work correctly.

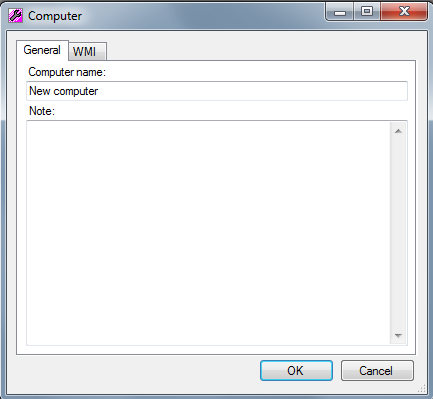

Computer Properties

If you click on EditEdit or double-click a computer, a new window will open with the computer properties.

Computer List

Here you can edit basic computer properties (Name and Note) and WMI settings specific for this computer. By default, all computers use global WMI settings described in Global Monitoring Settings.

Install Agent

ALVAO Admin supports remote installation of Agent and other MSI packages. Please refer to Agent Installation for detailed information.
